What is a pneumatic cylinder?
The English name is Pneumatic Cylinder
Pneumatic cylinders, also known as pneumatic actuators, are products used to provide linear or rotary motion and force to automated systems, machines and processes, for example in industrial applications.
Pneumatic cylinders and actuators operate when compressed air is forced into the cylinder or actuator itself to move a piston placed inside it. The ‘work’ is done by a mechanism attached to the piston, converting the energy produced for practical use
Pneumatic cylinders (CYLINDERS CAMOZZI)
Camozzi offers a wide range of cylinders with diameters from 6 to 20 mm and with strokes from 5 to 3000 mm. Cylinders are offered as single-acting or double-acting with or without dual rods, magnetic or non-magnetic, with external rods available on some models. The diverse range of Camozzi cylinders, together with multiple mounting options, high speeds and high quality materials allows users greater flexibility in devising technical solutions.
Camozzi pneumatic cylinders
METRIC AIR CYLINDERS
● ISO cylinder and standard cylinder: series 16,23,24 and 25
● Compact cylinder: QN, 31 series
● Stainless steel cylinder (stainless steel cylinder): series 90, 97
● guide cylinder: QCT, QX series
● Non-standard cylinders: series 14, 27
● Cylindrical cylinder: series 69, 30
● rodless cylinder: series 50, 52
1. ISO cylinder and standard cylinder: series 16,23,24 and 25

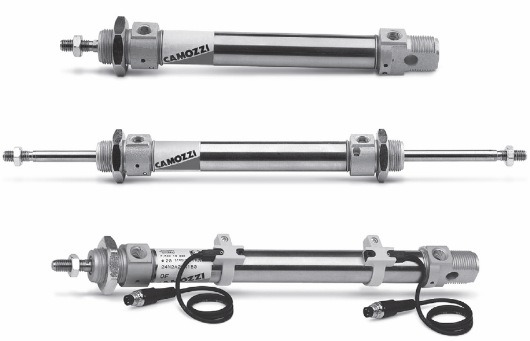

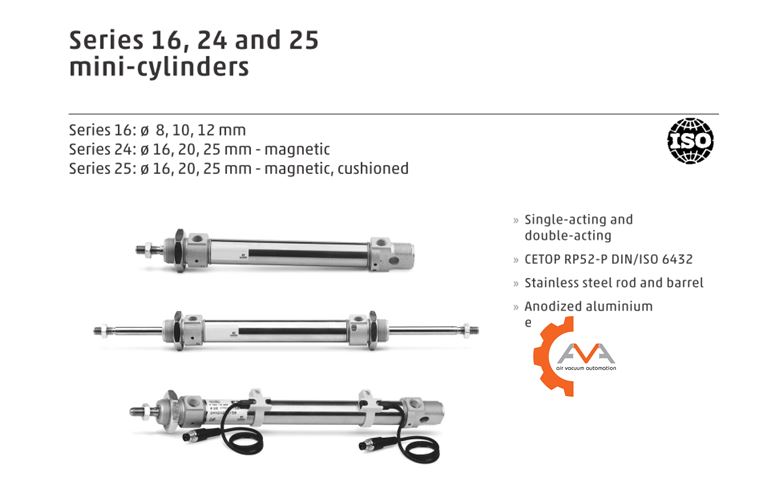

Several types of ISO certified pneumatic cylinders are available. ISO standards often refer to product dimensions, including when applying racks or other accessories. This means that ISO standard pneumatic cylinders are interchangeable

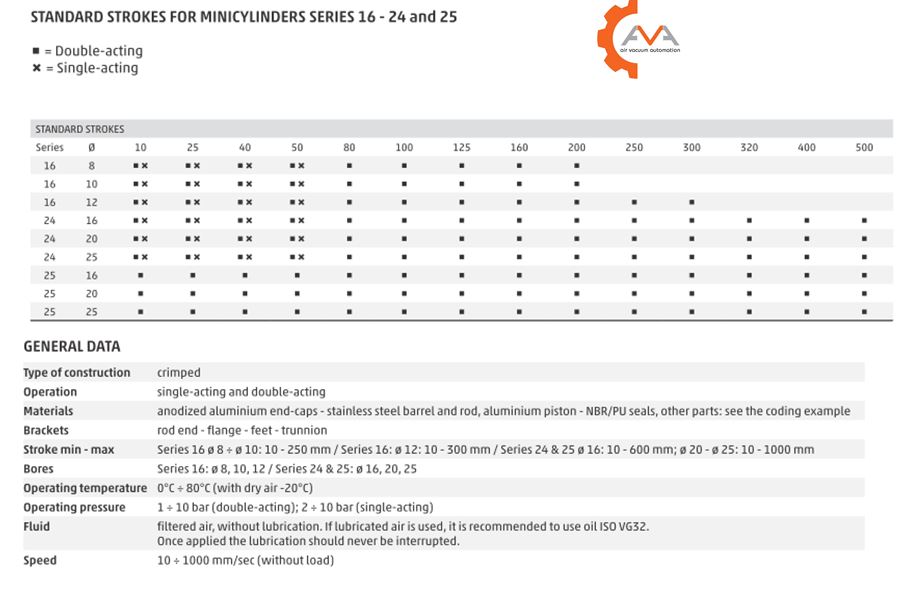

Drawings and parameters of pneumatic cylinders sereis 16,24,26
Why should you choose an auto-buffering pneumatic cylinder?
Series 23 pneumatic cylinder based on the innovative concept of automatic buffering and ISO 6432 compliant.
Camozzi Automation Series 23 ISO 6432 pneumatic cylinder with the innovation of 'auto cushioning'.
- The 'automatic cushion' system works like a conventional cushion, except instead of a needle valve, air is vented using profiled sleeves that have a number of precisely positioned holes with precisely set dimensions.
- As the system adapts to different combinations of speed and applied mass, the cushion self-adjusts
- Eliminating the need to adjust settings, the Series 23 pneumatic cylinder is finally tamper-proof, providing a long, maintenance-free life. While the cylinder benefits from smooth, vibration-free movement, the reduction in vibration and noise is also noticeable.
Cushioning ensures greater reliability and consistent performance over time.
If parameters such as friction and pressure change, the self-adjusting cushion ensures consistent deceleration at all times. Accelerating forces acting on parts and workpieces are reduced, the occurrence of wear is minimized and vibrations over time are minimized.
Series 23 is suitable for use in many industrial applications, especially if working conditions vary. Reducing installation and commissioning times, the 'auto-cushion' system provides a cost-effective alternative to manually adjustable cylinders.
In addition, there are also standard cylinder lines such as:
Series 40 Cylinders (ISO 15552, DIN/ ISO 6431, VDMA 24562)
The series 40 cylinders have been designed according to ISO 15552 and to previous DIN / ISO 6431 - VDMA 24562 standards. A permanent magnet on the pistons of these cylinders can send electrical signals through proximity switches mounted on the cylinder's slide to indicate its position. This line is usually equipped with an end stroke pad that can be adjusted via a screw on the end block. To soften the impact of the piston on the end block, these square pneumatic cylinders are also equipped with mechanical cushions.
Series 41 (DIN/ ISO 6431, VDMA 24562)
Series 61 Cylinders (DIN/ ISO 6432)
Series 63 Cylinders (ISO 15552, DIN/ ISO 6431, VDMA 24562)
2. Compact cylinder: QN, 31 series

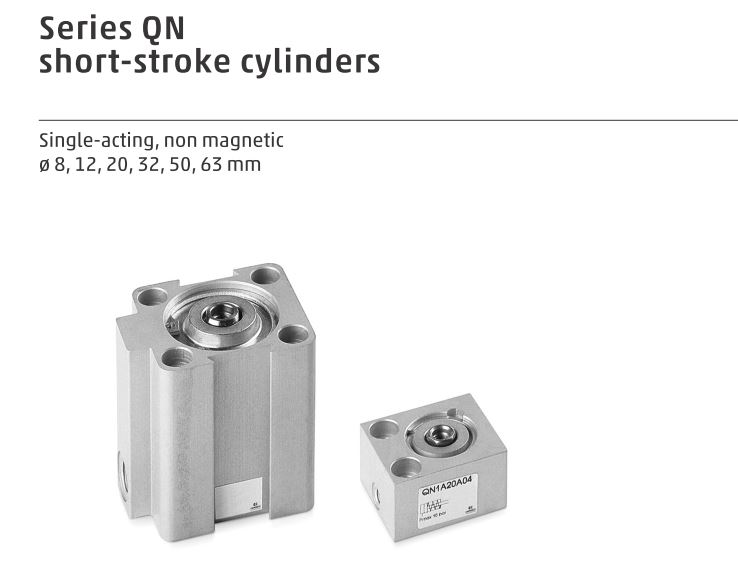

The compact, short-stroke pneumatic cylinders of the QN series have been designed so that they can be installed in very small spaces.
Series 31 Compact Magnetic Cylinders - Male and Female Rod

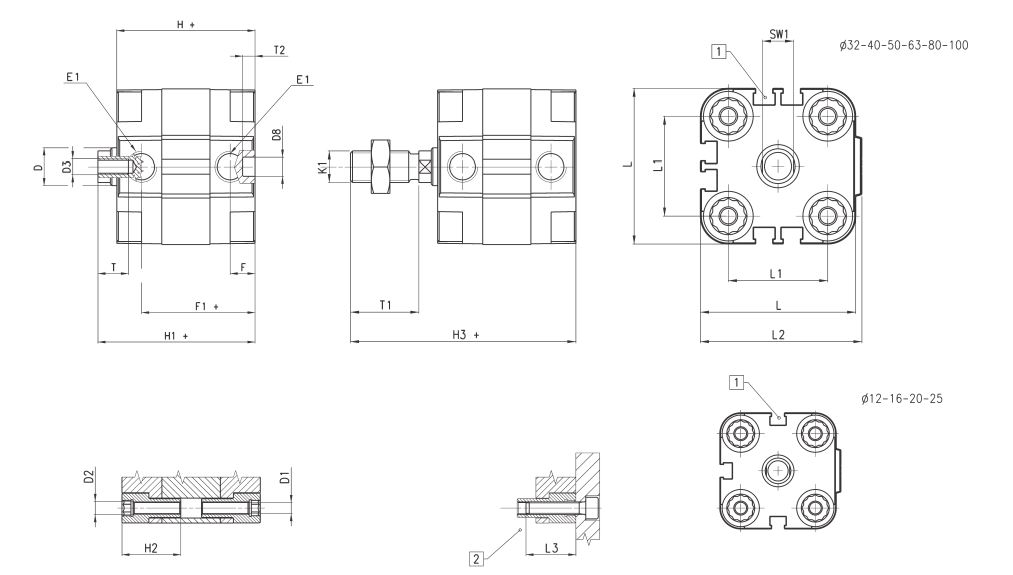

Image: Structure of series 31 pneumatic cylinder
3. Guide cylinder: QCT, QX series
Our QCT and QCB Series cylinders with industrial automation solutions.
QX series double-acting, magnetic, guided pneumatic cylinder
The QX Series actuators offer a wide range of solutions covering a large number of applications requiring guided linear motion. The design of the dual piston, in addition to ensuring solid and efficient guidance, also provides twice the force in a compact size. When a high force with precise movement is required, along with integrated non-rotating and guiding functions, the QX cylinder is the ideal solution

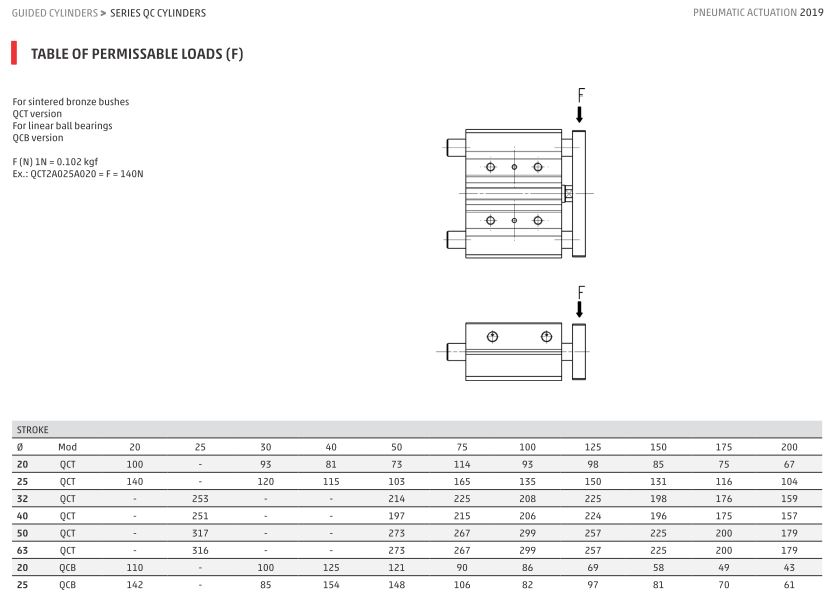

Image: QCT cylinder parameters
Image: QX cylinder drawing
4. Non-standardized cylinders: series 14, 27
Series14 Compact mini cylinder - Threadless piston rod

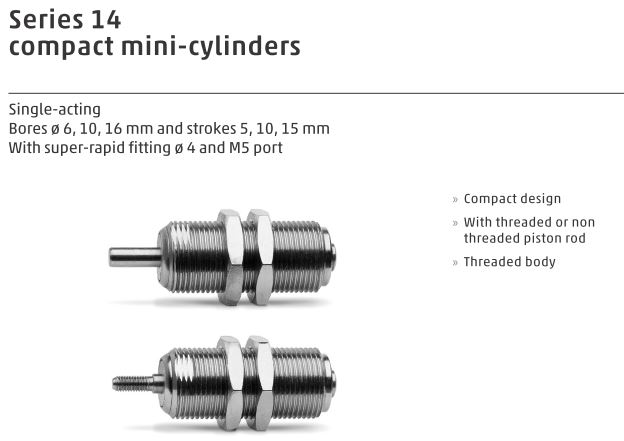

Series 14 single-acting compact pneumatic mini cylinder - Threadless piston rod with super quick mounting port
The 14 compact single-acting cylinders have been designed for installation in very small spaces. The design allows the cylinders to be mounted onto threaded blocks integrated into the machine.
Series14 14 Compact cylinder - Threaded piston rod
5. Cylinder with rotating cylinder: Series 69, 30

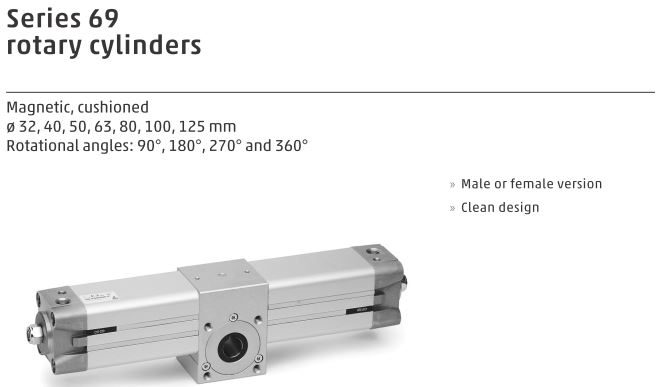

Magnetic Cushion Series 69 Rotary Actuators/Cylinders, available in female and male versions. Rotation angle: 90, 180, 270 and 360 degrees.
Series 69 rotary cylinders are available in 7 different bores and can meet a wide range of operating requirements.

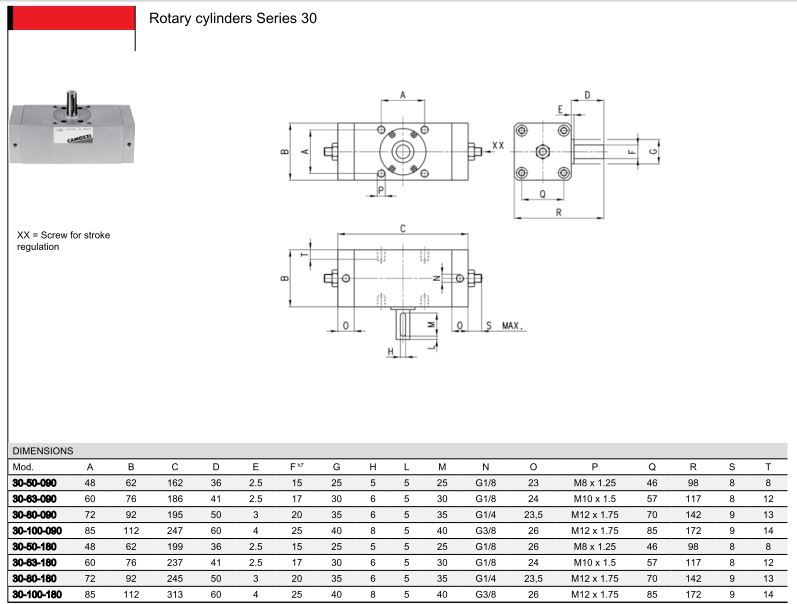

Series 30 pneumatic rotary actuators/cylinders are made of special extruded aluminum. Compact size and clean lines provide a good aesthetic appearance. Rotation angle: 90 and 180 degrees.
Series 30 cylinder specifications
6. Shaftless cylinder: series 50, 52

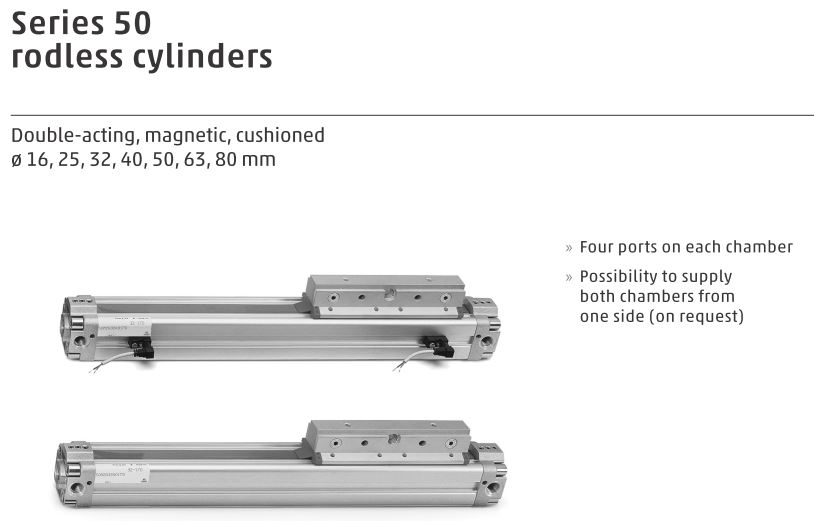

Double-acting, magnetic cushion Series 50 shaftless cylinder, four ports per chamber. Same day cylinder service. Non-standard cylinders are available upon request.
Cylinder no axis The Series 50 is available in 7 different diameters to accommodate the widest range of applications possible. A permanent magnet assembled on the cylinder piston allows position detection by means of position switches near the slide shaft. This series of cylinders are usually supplied with end stroke cushions, which can be adjusted by means of a screw located on the end cover.
Double acting, magnetic cushion Series 52 Shaftless pneumatic cylinder
Cylinder no axis The Series 52 is available in five diameters (25, 32, 40, 50 and 63 mm) and is available in three main versions: Basic (M), with plain bearings (G) and with roller bearings (R). Furthermore, these three major versions are all available with standard or short series to cover a wider range of applications.
