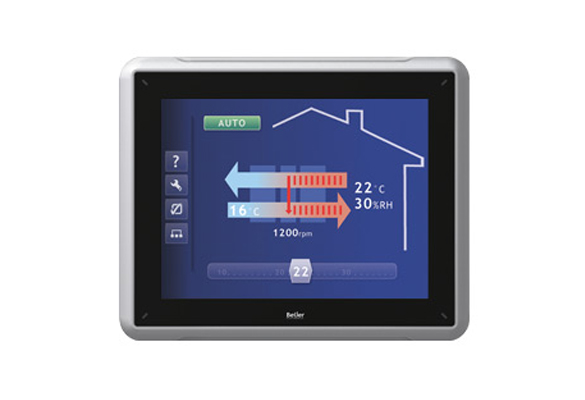

iX T10A-SC
SKU: AVA-28A11F48
Category: iX TxX operator panels
PRICE:
REQUEST A QUOTE
Manufacturer warranty
Overview
iX T10A-SC - operator panels with soft control 10.4" graphic touch HMI with iX runtime and CODESYS soft control 10.4" TFT-LCD touch screen 640 × 480 (4:3) Facts General description Part number 630001902 Life cycle status Discontinued Warranty 1 year Mechanical Mechanical size 280
TECHNICAL SUPPORT & QUOTE
Talk to the AVA engineering team for the best offer.
TECHNICAL DETAILS & SPECIFICATIONS
iX T10A-SC - operator panels with soft control
|
|
10.4" graphic touch HMI with iX runtime and CODESYS soft control10.4" TFT-LCD touch screen 640 × 480 (4:3) |
Facts
General description
| Part number | 630001902 |
| Life cycle status | Discontinued |
| Warranty | 1 year |
Mechanical
| Mechanical size | 280 x 228 x 52.2 mm |
| Touch type | Resistive type |
| Weight | 1.5 kg |
| Housing material | Powder coated aluminum |
Power
| Input voltage | 24 VDC (19 - 32VDC) |
| Power consumption (max) | 9.0 W |
| Input fuse | Internal DC fuse, 2.0 AT, 5 x 20mm |
Display
| Size diagonal | 10.4 inch |
| Resolution | 640 x 480 pixels |
| Backlight | LED backlight |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 450 cd/m2 |
| Backlight dimming | Industrial |
| Display type | TFT LCD |
Serial communication
| Number of serial ports | 2 Port combined 9pin DSUB with dual pin out |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS 485 |
| Serial port 3 | RS 232 |
| Serial port 4 | RS422 (RTS)/RS485 |
Ethernet communication
| Number of Ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
Environmental
| Operating temperature | -10 to + 60 °C |
| Storage temperature | -20 to + 70 °C |
| Shock | 10G 11ms half sine |
| Vibration | 0,7G RMS |
| Sealing front | IP65 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
