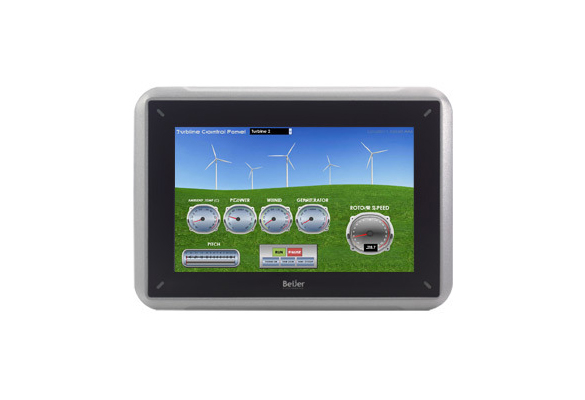

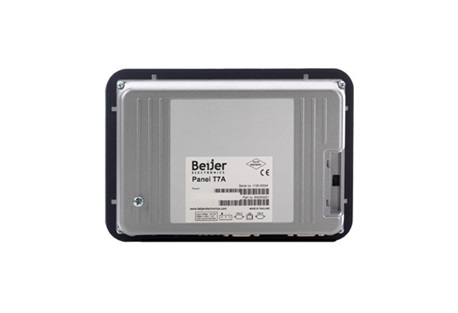

iX T7A

GENUINE PRODUCT

SKU: AVA-0FCE8A9F

Category: Products

PRICE:

REQUEST A QUOTE Manufacturer warranty

Overview

7'' graphic touch HMI with iX runtime 7" TFT-LCD touch screen 800 × 480 (16:9) Application storage 80 MB Operating temperature -10 to +60 °C CE, UL508 and DNV approvals Facts General description Part number 630000202 Life cycle status Discontinued Warranty 1 year Mechanical Mecha

TECHNICAL SUPPORT & QUOTE

Talk to the AVA engineering team for the best offer.

+84 28 3620 4172 Zalo: 0909 790 869 / 0908 888 733 REQUEST A QUOTE

TECHNICAL DETAILS & SPECIFICATIONS

7'' graphic touch HMI with iX runtime

7" TFT-LCD touch screen

800 × 480 (16:9)

Application storage 80 MB

Operating temperature -10 to +60 °C

CE, UL508 and DNV approvals

Facts

General description

Part number	630000202
Life cycle status	Discontinued
Warranty	1 year

Mechanical

Mechanical size	204 x 143 x 52.2 mm
Touch type	Resistive type
Weight	0.7 kg
Housing material	Powder coated aluminum

Power

Input voltage	+24 VDC (18 - 32 VDC)
Power consumption (max)	6.0 W
Input fuse	Internal DC fuse, 2.0 AT, 5 x 20mm

Display

Size diagonal	7.0 inch
Resolution	800 x 480 pixels
Backlight	LED backlight
Backlight life time	20,000 hrs
Backlight brightness	350 cd/m2
Backlight dimming	Industrial
Display type	TFT LCD

Serial communication

Number of serial ports	2 Port combined 9pin DSUB with dual pin out
Serial port 1	RS 232 (RTS/CTS)
Serial port 2	RS422/485
Serial port 3	RS 232
Serial port 4	RS422 (RTS)/RS485

Ethernet communication

Number of Ethernet ports	1
Ethernet port 1	1x10/100 Base-T (shielded RJ45)

Environmental

Operating temperature	-10 to + 60 °C
Storage temperature	-20 to + 70 °C
Shock	10G 11ms half sine
Vibration	0,7G RMS
Sealing front	IP65
Sealing back	IP20
Humidity	<85 % non-condensed
Altitude (max)	0
