GENUINE PRODUCT
QTERM A12
SKU: AVA-AC9C2DB8
Category: Products
PRICE:
REQUEST A QUOTE
Manufacturer warranty
Overview
QTERM A12 - AVA Air Vacuum Automation.
TECHNICAL SUPPORT & QUOTE
Talk to the AVA engineering team for the best offer.
TECHNICAL DETAILS & SPECIFICATIONS

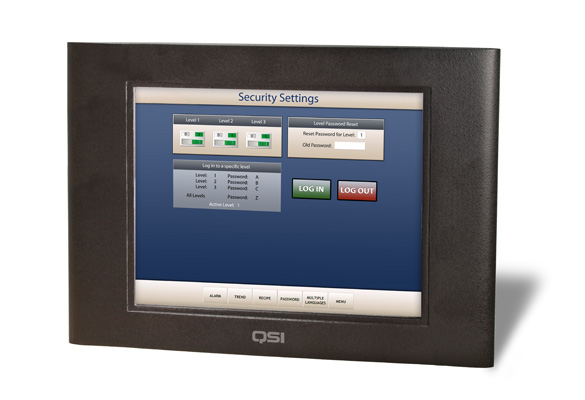

QTERM A12
|
|
12'' Rugged touch HMIThe QTERM-A12 human machine interface features universal connectivity, bright 12.1" (307 mm) widescreen display, for rugged, hazardous, extreme temperature environments.- 800 x 600 pixel SVGA, 12.1” (307 mm) diagonal, LED lighted, TFT color LCD touch screen display - Panel-mount - -30 to 70 °C operating temperature - Touch screen - NEMA-4 sealing, IP66, UL 50 Type 4X (outdoor) - 10 to 32 VDC - iX, Qlarity and native Windows CE design environment |
Facts
General description
| Part number | 317992 |
| Life cycle status | Discontinued |
| Warranty | 2 year |
Certifications
| General | FCC, CE |
| Hazardous | ULC1D2 |
| Safety | UL508, CAN/CSA C22.2 No.142-M1987 |
Mechanical
| Mechanical size | 344 x 267 x 69 mm |
| Touch type | Resistive |
| Cut-out size | 303 x 254 mm |
| Weight | 2.1 kg |
| Housing material | Polymer |
Power
| Input voltage | 10 to 32 VDC |
| Power consumption (max) | 9 Watts @ 24 VDC (typical), 13 Watts @ 24 VDC (max) |
System
| CPU | XScale PXA 300 ARM 624 MHz |
| RAM | 128 MB |
| FLASH | 4 GB |
Software
| Operating system | Windows CE |
Display
| Size diagonal | 12.1" (307 mm) |
| Resolution | 800 x 600 |
| Backlight | LED lighted, TFT color LCD |
| Backlight life time | 50000 hours |
| Backlight brightness | 450 cd/m2 |
| Backlight dimming | Software-controllable |
| Display type | 5-wire |
Serial communication
| Number of serial ports | 2 Port 9pin DSUB |
Ethernet communication
| Number of Ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
Communication CAN
| Number of CAN ports | 2 |
Environmental
| Operating temperature | -30 to 70 °C |
| Storage temperature | -40 to 85 °C |
| Shock | 40 g, 11 ms, common orthogonal axes |
| Vibration | 10 to 1500 Hz, 4g RMS |
| Sealing front | NEMA-4, IP66, UL 50 Type 4x (outdoor) |
| Humidity | 5 to 95%, non-condensing |
